3F 3jaw Closed Center Finger Power Chuck For Gripping

Brand Name : NTH

Model Number : 3F-05,3F-06,3F-08,3F-10,3F-12

Place of Origin : CHINA

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T, Western Union

Supply Ability : 1000 sets/M

Delivery Time : 3 work days available

Packaging Details : Good and firm package is suitable for sea and air shipping

Product name : 3F FINGER POWER CHUCK

Material : Forged steel

Usage : Gripping/Fixture

Feature : High precision/High quality

Size : Refer to the specification

Service : OEM/ODM is acceptable

Contact Now

Product Details

Brand:NTH

To prevent deformation of workpiece as gripping the end surface, suitable for thin workpiece process.

The compensating mechanism of gripping that can clamp irregular surface workpieces.

It can go with the check device to inspect the clamping status.

Production Catalogue Download:3F SERIES.pdf

3F 3jaw Closed Center Finger Power Chuck For Gripping

3F 3jaw Closed Center Finger Power Chuck For Gripping

(Size unit: mm)

Spec / Model Plunger stroke
mm		 Jaw stroke Dia.
mm		 Max chucking Dia.
mm		 Min chucking Dia.
mm		 Max.D.B.Pull
KN(kgf)
3F-05 12 8 53 25 7.5(765)
3F-06 12 8 79 55 9.0(918)
3F-08 12 8 106 75 18.0(1835)
3F-10 12 8 150 119 18.0(1835)
3F-12 12 8 200 169 18.0(1835)

Spec

/ Model

 Max clamping force
KN(kgf)		 Max RPM Inertia
kg*m2		 Weight
kg		 Matched cylinders Max Pressure
Mpa(kgf)
3F-05 6.0(612) 4000 0.02 11 S-100R/SNK-100 1.0(10)
3F-06 7.5(765) 4000 0.04 12 S-100R/SNK-100 1.2(12)
3F-08 16.5(1680) 3500 0.13 23 S-100R/SNK-100 2.5(25)
3F-10 16.5(1680) 3500 0.3 33 S-100R/SNK-100 2.5(25)
3F-12 16.5(1680) 3000 0.56 44 S-100R/SNK-100 2.5(25)

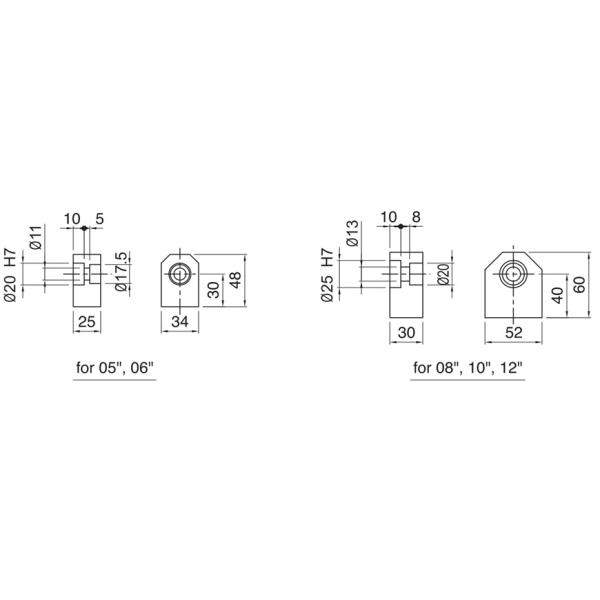

Spec
/ Model		 A B C D F G Max G Min J J1 K
3F-05 135 86 110 82.6 40 75 55 25 10 M12×1.75
3F-06 165 86 140 104.8 45 75 55 28 14 M16×2
3F-08 210 90 170 133.4 56 80 60 38 16 M20×2.5
3F-10 254 95 220 171.4 56 75 55 38 16 M20×2.5
3F-12 304 95 220 171.4 56 75 55 38 16 M20×2.5

Spec /
Model		 L L1 M Max M Min N P Q R S T U
3F-05 M10 15 56 36 20 M10 42.5 27 3-M6 50 -
3F-06 M10 15 56 36 20 M10 57.5 40 3-M8 64 20°
3F-08 M12 18 71 51 25 M12 77.5 53.5 6-M8 104 20°
3F-10 M16 24 71 51 25 M12 99.5 75.5 6-M8 140 20°
3F-12 M16 24 71 51 25 M12 124.5 100.5 6-M8 190 20°

Note: Subject to technology changes without prior information;
Non-standard requirements can be made.
