Svf-Be Flexible Line Up Vise Series Offers More Parts Held Larger Size Parts Held

Model Number : SVF-BE

Place of Origin : CHINA

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T, Western Union

Supply Ability : 1000 sets/M

Delivery Time : Negotiation

Packaging Details : Good and firm package is suitable for sea and air shipping

Product name : SVF-BE FLEXIBLE LINE UP VISE SERIES

Material : 100% tool steel

Heat treated : HRC 55° & ground

Feature : High Capacity High Flexibility

Size : Refer to the specification

Contact Now

BE series offers more parts held&larger size parts held

-compared to the “B”series

High Capacity High Flexibility

Two way clamping

Material 100% tool steel

Heat treated HRC 55° & ground

Clamping force:

SVF-50 : 1000 kgf

SVF-72 : 2000 kgf

SVF-100 : 3000 kgf

Svf-Be Flexible Line Up Vise Series Offers More Parts Held Larger Size Parts Held

MODEL NO. A B C D E F G H I J K L M N O P Q R S kg
SVF-BE-5030-80 300 50 30 80 30 36 14 75 24.8 50 10 12 12.5 70 0.50 160 1.5 12 36 6.0
SVF-BE-5030-100 300 50 50 100 30 36 14 75 24.8 50 10 12 12.5 100 0.50 100 1.5 12 36 6.0
SVF-BE-5040-80 400 50 40 80 30 36 14 75 24.8 50 10 12 12.5 80 0.50 240 1.5 12 36 7.5
SVF-BE-5040-100 400 50 50 100 30 36 14 75 24.8 50 10 12 12.5 100 0.50 200 1.5 12 36 7.5
SVF-BE-5050-80 500 50 50 80 30 36 14 75 24.8 50 10 12 12.5 90 0.50 320 1.5 12 36 9.0
SVF-BE-5050-100 500 50 50 100 30 36 14 75 24.8 50 10 12 12.5 100 0.50 300 1.5 12 36 9.0
SVF-BE-5060-80 600 50 60 80 30 36 14 75 24.8 50 10 12 12.5 100 0.50 400 1.5 12 36 10.2
SVF-BE-5060-100 600 50 50 100 30 36 14 75 24.8 50 10 12 12.5 100 0.50 400 1.5 12 36 10.2
SVF-BE-5070-80 700 50 70 80 30 36 14 75 24.8 50 10 12 12.5 110 0.50 480 1.5 12 36 11.5
SVF-BE-5070-100 700 50 50 100 30 36 14 75 24.8 50 10 12 12.5 100 0.50 500 1.5 12 36 11.5
SVF-BE-7240-100 400 72 50 100 40 48 18 112 39.7 72 14 16 21.3 100 0.70 200 2.0 16 52 18.0
SVF-BE-7250-100 500 72 50 100 40 48 18 112 39.7 72 14 16 21.3 100 0.70 300 2.0 16 52 21.0
SVF-BE-7260-100 600 72 50 100 40 48 18 112 39.7 72 14 16 21.3 100 0.70 400 2.0 16 52 24.0
SVF-BE-7270-100 700 72 50 100 40 48 18 112 39.7 72 14 16 21.3 100 0.70 500 2.0 16 52 26.0
SVF-BE-10040-100* 400 100 50 100 44 48 18 115 43.1 72 14 16 22.2 100 0.85 200 2.5 16 65 27.0
SVF-BE-10050-100 500 100 50 100 44 48 18 115 43.1 72 14 16 22.2 100 0.85 300 2.5 16 65 31.0
SVF-BE-10060-100 600 100 50 100 44 48 18 115 43.1 72 14 16 22.2 100 0.85 400 2.5 16 65 35.0
SVF-BE-10070-100 700 100 50 100 44 48 18 115 43.1 72 14 16 22.2 100 0.85 500 2.5 16 65 39.0

(SVF vises listed above come equipped to clam 1-4 parts, if additional part clamping is required please order optional accessories as listed on parts pages)

[*]these units will only hold up to 3 parts.

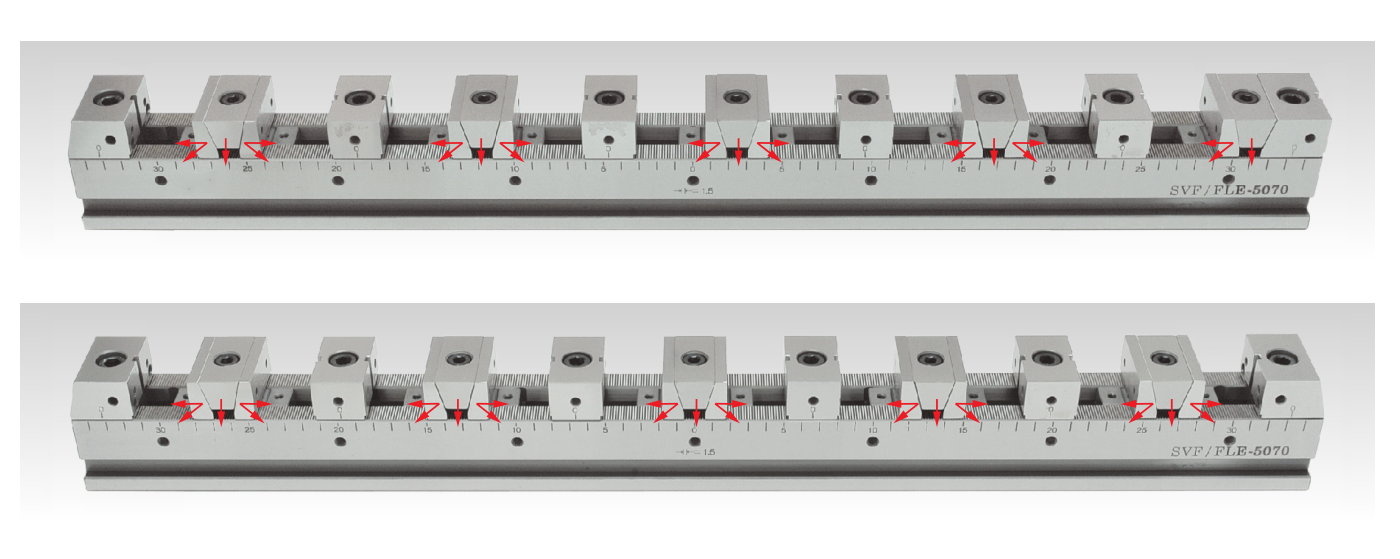

Forcing direction

Svf-Be Flexible Line Up Vise Series Offers More Parts Held Larger Size Parts HeldSvf-Be Flexible Line Up Vise Series Offers More Parts Held Larger Size Parts Held

Svf-Be Flexible Line Up Vise Series Offers More Parts Held Larger Size Parts Held

Maximum width of the workpieces which can be clamped

MODEL NO.

1 PCS

Svf-Be Flexible Line Up Vise Series Offers More Parts Held Larger Size Parts Held

2 PCS

Svf-Be Flexible Line Up Vise Series Offers More Parts Held Larger Size Parts Held

3 PCS

Svf-Be Flexible Line Up Vise Series Offers More Parts Held Larger Size Parts Held

4 PCS

Svf-Be Flexible Line Up Vise Series Offers More Parts Held Larger Size Parts Held

5 PCS

Svf-Be Flexible Line Up Vise Series Offers More Parts Held Larger Size Parts Held
SVF-BE-5030 203 96 45 31 14
SVF-BE-5040 303 146 79 56 34
SVF-BE-5050 403 196 112 81 54
SVF-BE-5060 503 246 145 106 74
SVF-BE-5070 603 296 179 131 94
SVF-BE-7240 269 126 59 40 17
SVF-BE-7250 369 176 92 65 37
SVF-BE-7260 469 226 125 90 57
SVF-BE-7270 569 276 159 115 77
SVF-BE-10040 258 119 49 32 --
SVF-BE-10050 358 169 83 57 28
SVF-BE-10060 458 219 116 82 48
SVF-BE-10070 558 269 149 107 68

MODEL NO.

6 PCS

Svf-Be Flexible Line Up Vise Series Offers More Parts Held Larger Size Parts Held

7 PCS

Svf-Be Flexible Line Up Vise Series Offers More Parts Held Larger Size Parts Held

8 PCS

Svf-Be Flexible Line Up Vise Series Offers More Parts Held Larger Size Parts Held

9 PCS

Svf-Be Flexible Line Up Vise Series Offers More Parts Held Larger Size Parts Held
SVF-BE-5030 -- -- -- --
SVF-BE-5040 26 15 -- --
SVF-BE-5050 43 29 24 15
SVF-BE-5060 60 43 36 26
SVF-BE-5070 76 58 49 37
SVF-BE-7240 -- -- -- --
SVF-BE-7250 28 -- -- --
SVF-BE-7260 44 27 22 --
SVF-BE-7270 61 41 34 22
SVF-BE-10040 -- -- -- --
SVF-BE-10050 19 -- -- --
SVF-BE-10060 36 18 -- --
SVF-BE-10070 53 32 26

--

MODEL NO.

10 PCS

Svf-Be Flexible Line Up Vise Series Offers More Parts Held Larger Size Parts Held

11 PCS

Svf-Be Flexible Line Up Vise Series Offers More Parts Held Larger Size Parts Held

12 PCS

Svf-Be Flexible Line Up Vise Series Offers More Parts Held Larger Size Parts Held

13 PCS

Svf-Be Flexible Line Up Vise Series Offers More Parts Held Larger Size Parts Held
SVF-BE-5030 -- -- -- --
SVF-BE-5040 -- -- -- --
SVF-BE-5050 -- -- -- --
SVF-BE-5060 22 15 -- --
SVF-BE-5070 32 24 21 16
SVF-BE-7240 -- -- -- --
SVF-BE-7250 -- -- -- --
SVF-BE-7260 -- -- -- --
SVF-BE-7270 18 -- -- --
SVF-BE-10040 -- -- -- --
SVF-BE-10050 -- -- -- --
SVF-BE-10060 -- -- -- --
SVF-BE-10070 -- -- -- --
