SC12 EXTRA HEIGHT SOFT JAWS FOR POWER CHUCK

Brand Name : OMATEI

Model Number : SC12H60,SC12H70 etc

Place of Origin : CHINA

MOQ : 1 set

Payment Terms : T/T, Western Union

Supply Ability : 1000 sets/M

Delivery Time : 3 work days

Packaging Details : Good and firm package is suitable for sea and air shipping

Price : Negotiation

Product name : SC12 EXTRA HEIGHT SOFT JAWS FOR POWER CHUCK

Material : 45#Steel/Plastic/Brass

Function : Clamping

Feature : High quality /High precision

Size : Refer to the specification

Service : ODM/OEM is available

Contact Now

SC12 EXTRA HEIGHT SOFT JAWS FOR POWER CHUCK

Brand:OMATEI

Selection Guidance
1, Chuck brand and model name
2, Workpiece size and the gripping height
Advantage
1, Fine serration pitch can tight fit with chuck master jaws, lower abrasion.
2, For standard soft jaws, the material is high quality 45# steel, stronger and hardenable.
3, Applicable onto the related chuck models of SMW/Kitagawa/Soul/Howa/Samchully/Auto-strong/Tonfou/Chandox/Autogrip/NTH and so on well-known brand.
4, Customized and non-standard jaws and be designed and OEM.

SC12 EXTRA HEIGHT SOFT JAWS FOR POWER CHUCK

Serration Pitch:1.5×60° UNIT:mm

Model J1 J2 J3 J4 J5 J6 B Screw Weight kg/set
SC12H60 129 50 60 21/18 39 30 23/20 M14 7.8
SC12H70 129 50 70 21/18 39 30 23/20 M14 9.1
SC12H80 129 50 80 21/18 39 30 23/20 M14 10.5
SC12H90 129 50 90 21/18 39 30 23/20 M14 11.6
SC12H100 129 50 100 21/18 39 30 23/20 M14 12.9
SC12H110 129 50 110 21/18 39 30 23/20 M14 14.2
SC12H120 129 50 120 21/18 39 30 23/20 M14 15.6
SC12H130 129 50 130 21/18 39 30 23/20 M14 17

Other option of serration pitch: 3.0*60°
Subject to technical changes


Product Tags:

machining soft jaws



cnc soft jaws


Wholesale SC12 EXTRA HEIGHT SOFT JAWS FOR POWER CHUCK from china suppliers

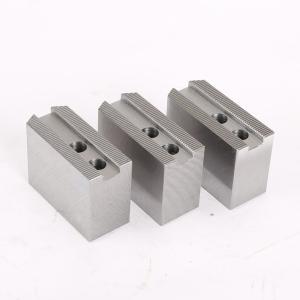

SC12 EXTRA HEIGHT SOFT JAWS FOR POWER CHUCK Images
