Brand Name : NTH

Model Number : MB-100 4V,MB-130 4V,MB-160 4V,MB-200 4V,MHV-100 4V, etc

Place of Origin : CHINA

MOQ : 1 set

Payment Terms : Western Union, T/T

Supply Ability : 1000 sets/M

Delivery Time : 3 work days available

Packaging Details : Good and firm package is suitable for sea and air shipping

Price : Negotiation

Product name : 4 set one unit vertical precision vice

Material : Nodular cast iron

Usage : Gripping

Feature : High precision/Stable/High quality

Size : Refer to the specification

Precision : within 0.02mm/100mm

Contact Now

4 set one unit vertical precision vice

MB MHV MPV 4 set one unit vertical precision vice

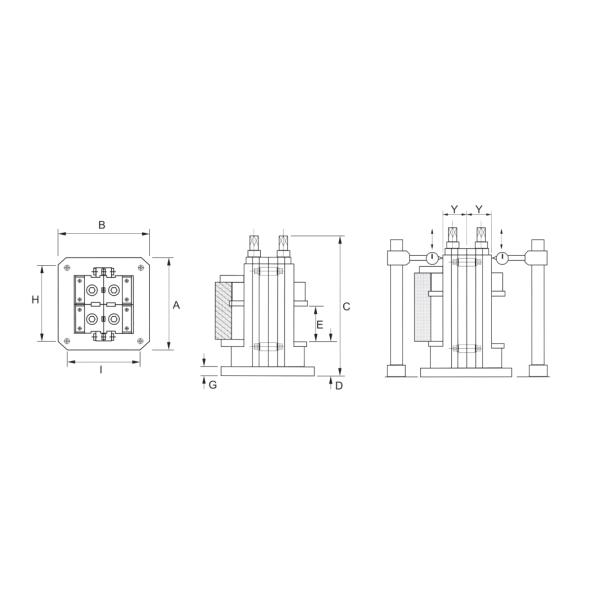

MODEL	A	B	C	D	E	F	G	H	I	Clamping force
MB-100 4V	400	400	530	120	150	45	40	320	320	-
MB-130 4V	400	400	580	125	200	50	40	320	320	-
MB-160 4V	500	500	680	143	280	60	40	400	400	-
MB-200 4V	500	500	730	148	300	70	40	400	400	-
MHV-100 4V	400	400	570	120	145	45	40	320	320	4000kgf
MHV-130 4V	400	400	620	125	190	50	40	320	320	4500kgf
MHV-160 4V	500	500	720	143	265	60	40	400	400	5000kgf
MHV-200 4V	500	500	770	148	300	70	40	400	400	5500kgf
MPV-100 4V	400	400	570	120	150	45	40	320	320	4000kgf
MPV-130 4V	400	400	620	125	200	50	40	320	320	4500kgf
MPV-160 4V	500	500	720	143	280	60	40	400	400	5000kgf
MPV-200 4V	500	500	770	148	300	70	40	400	400	5500kgf
